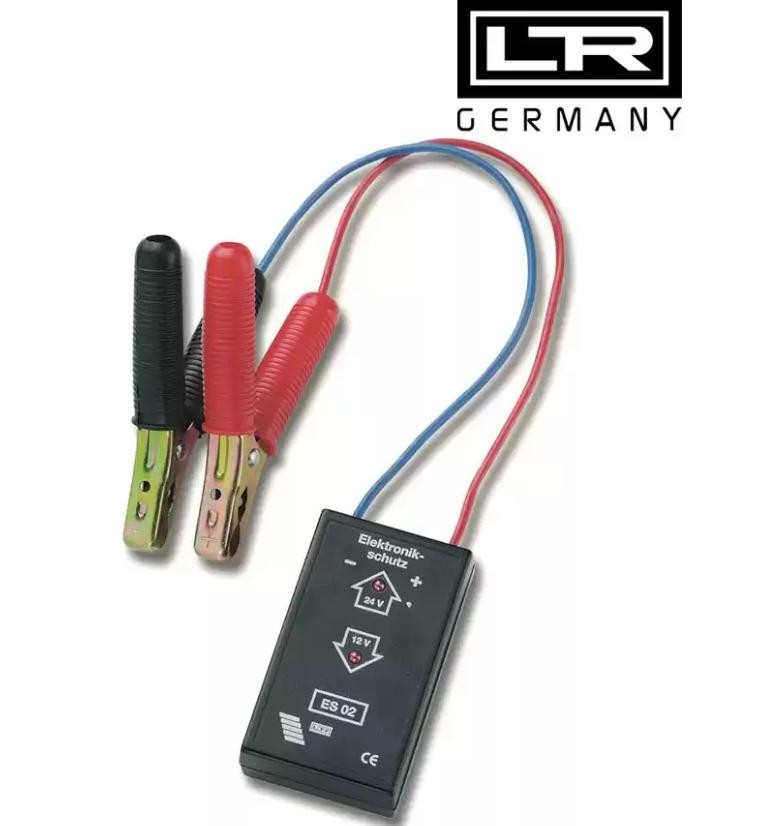

071204_1 LEITENBERGER Overvoltage Protection Magirus-Deutz D-Series

You replace a voltage regulator. Two weeks later, the new one fails. You fit another rectifier. Same story. Burnt diodes. Melted solder joints. The problem is not your alternator components. The problem is upstream. Your Magirus-Deutz D-Series experiences voltage spikes. Old wiring. Failing battery connections. Jump starts from mismatched trucks. Each event sends 30-volt surges through your 12V system. Those spikes destroy regulators and rectifiers repeatedly. You need  071204_1 LEITENBERGER Overvoltage

This LEITENBERGER overvoltage protection unit sits between your alternator and your electrical system. It clamps voltage spikes before they reach sensitive components. Electronic operation. No moving parts. Wide voltage range from 12V to 24V systems. At £164.99, it stops the cycle of repeated alternator repairs.

Why Your Magirus-Deutz Keeps Eating Regulators – And How This Stops It

The D-Series electrical system dates from the 1970s. No onboard surge protection. No spike suppression. Every time a starter motor disengages, it generates a voltage kick. Every time you boost a dead battery, the donor truck sends uncontrolled voltage.

Your alternator’s regulator and rectifier absorb those spikes. Once. Twice. Then they fail.

071204_1 changes that. Install it once on the charge wire. It constantly monitors system voltage. When voltage exceeds safe limits (around 16V for 12V systems, 32V for 24V), it disconnects the alternator for milliseconds. Long enough to kill the spike. Not long enough to dim your lights.

LEITENBERGER GmbH builds these units for commercial vehicle applications. They understand old electrical systems. They know what destroys new components.

071204_1 LEITENBERGER Overvoltage Protection — Full Specification

Voltage range is automatic. No switches to set. The unit detects 12V or 24V systems and adjusts its clamping threshold accordingly.

Which Magirus-Deutz D-Series Needs 071204_1 LEITENBERGER Overvoltage?

Every D-Series benefits. But these specific situations demand 071204_1:

• D 10 through D 30 with repeated alternator component failures (third regulator in 12 months)

• Trucks used for jump starting other vehicles regularly

• Vehicles with aftermarket electronics (beacons, inverters, refrigeration)

• Fire truck and emergency conversions where spike damage risks mission failure

• D-Series used with battery chargers of unknown quality at depots

Fleets running mixed voltage equipment (12V trucks and 24V trucks in same yard) face the highest risk. A single wrong connection during jump starting destroys multiple components. Read LEITENBERGER’s technical application notes for detailed engineering specifications.

What 071204_1 LEITENBERGER Overvolta GmbH Brings to Your Repair

LEITENBERGER is a German specialist in commercial vehicle electrical protection. Based in Bavaria, they supply transit authorities, fire departments, and logistics fleets across Europe. Their overvoltage units are mandatory spec for many municipal bids.

The unit uses solid-state switching. No relay contacts to weld shut. No mechanical wear. Response time is measured in microseconds. Faster than any alternator regulator can react. Therefore, the regulator never sees the spike. It never fails. Check LEITENBERGER warranty and support page for their five-year reliability guarantee.

Three Signs Your Magirus-Deutz Needs 071204_1 Now

You have replaced the same component twice – Second failed voltage regulator in six months. Second rectifier. Second set of diodes. That is not bad luck. That is a system problem. 071204_1 addresses the root cause.

Voltage spikes during jump starting – You boost another truck. Then your own alternator stops charging. The spike traveled backward through your electrical system. This unit blocks that path.

Intermittent warning lights with no pattern – Not engine speed related. Not temperature related. Just random flickering. Spikes cause false triggering of dashboard warnings. The overvoltage unit filters them out.

Installation – Where to Put It

Mount 071204_1 as close to the alternator as possible. The 0.40m cable length tells you LEITENBERGER expects short runs. Mount it on the alternator bracket or inner fender.

Cable cross section is 2.5 mm². That handles up to 20A continuously. Sufficient for D-Series alternator excitation circuits. Do not run the main charge wire through it. Use it on the D+ (excitation) wire or the regulator sense wire.

Connect the brown wire to chassis ground the black wire to alternator D+ terminal. Connect the blue wire to the warning light or regulator input. The unit self-calibrates on first power-up. You will hear a single click from the internal relay.

The Cost Case – Why £164.99 Saves Repeated Repairs

Each voltage regulator costs £40.  rectifier costs £22.  alternator rebuild costs £150 in labour plus parts.

Replace a regulator twice and a rectifier once. That is £102 in parts plus labour. You are already near half the cost of 071204_1. And you still have not solved the spike problem.

Fit this unit once. Stop the cycle. Three failed components from now, you will wish you bought it earlier.

Order Today — £164.99, EU Stock Ready

The 071204_1 LEITENBERGER overvoltage protection unit is in stock now in our Netherlands warehouse. Electronic. 12-24V auto-sensing. 150g. Ready to dispatch within 24 hours. Track your order status here.

Delivery takes 2–5 days to most EU countries including Germany, France, Italy, Belgium, Netherlands, Austria, Poland, Spain.

Add to cart now. Stop destroying alternator components. Protect your Magirus-Deutz D-Series electrical system for good. and check out the RMS 24 635 0460 Stator, alternator
